Lithium-ion Battery / Li-ion Battery
A lithium-ion (Li-ion) battery is an advanced battery technology that uses lithium ions as a key component of its electrochemistry. During a discharge cycle, lithium atoms in the anode are ionized and separated from their electrons. The lithium ions move from the anode and pass through the electrolyte until they reach the cathode, where they recombine with their electrons and electrically neutralize. The lithium ions are small enough to be able to move through a micro-permeable separator between the anode and cathode. In part because of lithium's small size (third only to hydrogen and helium), Li-ion batteries are capable of having a very high voltage and charge storage per unit mass and unit volume.
Li-ion batteries can use a number of different materials as electrodes. The most common combination is that of lithium cobalt oxide (cathode) and graphite (anode), which is most commonly found in portable electronic devices such as cellphones and laptops. Other cathode materials include lithium manganese oxide (used in hybrid electric and electric automobiles) and lithium iron phosphate (LFP). Li-ion batteries typically use ether (a class of organic compounds) as an electrolyte.
Lithium-ion batteries, while first commercially developed for portable electronics are now ubiquitous in daily life, in increasingly diverse applications including electric cars, power tools, medical devices, smart watches, drones, satellites, and utility-scale storage. As battery usage multiplies, so do the specific requirements, with increasing divergence of battery designs and sizes to suit each specific use. A pressing challenge, especially over the next decade, is to develop batteries that will make a significant contribution to reducing and eventually eliminating carbon emissions, in some countries as early as 2050, to mitigate global warming.
CETC manufactures and supplies high-quality lithium-ion battery cells and packs for installers and customers all over the world. All the batteries are subject to stringent quality controls throughout every step of the manufacturing and through to their final dispatch.

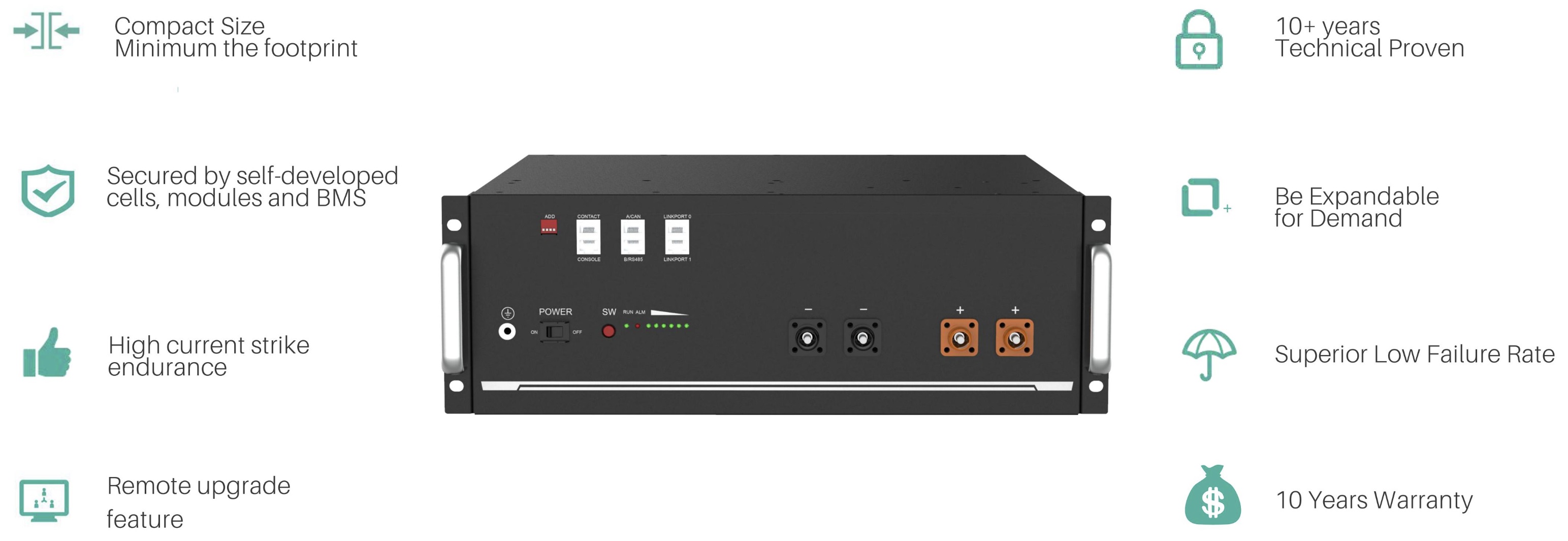

Specification of LiFePO4 Battery Pack / BESS | ||||||
---|---|---|---|---|---|---|
Battery Pack Nominal Capacity | 4800 Wh |
3552 Wh |
2400 Wh |
2840 Wh |
||
Battery Pack Usable Capacity | 4560 Wh |
3374 Wh |
2280 Wh |
2550 Wh |
||
Nominal Voltage | 48 VDC |
48 VDC |
48 VDC |
25.6 VDC |
||
Nominal Capacity | 100 Ah |
74 Ah |
50 Ah |
111 Ah |
||
DOD | 95% |
95% |
95% |
90% |
||
Weight | 39.7 kg |
32 kg |
22.5 kg |
27.5 kg |
||
Dimension | 442*420*161 mm |
442*420*132 mm |
442*420*89 mm |
442*420*120 mm |
||
Charge / Discharge Current (A) | 80Ah (Recommend) 100Ah@ (Max. Continuous) 101~120Ah@15min (Peak1) 121~200Ah@15sec (Peak2) |
37Ah (Recommend) 37Ah@ (Max. Continuous) 74~89Ah@60sec (Peak1) 90~200Ah@15sec (Peak2) |
25Ah (Recommend) 25Ah@ (Max. Continuous) 50~89Ah@60sec (Peak1) 90~200Ah@15sec (Peak2) |
56Ah@ (Continuous) 100Ah@15sec (Peak) |
||
Communication Port | RS485, CAN |
RS485, CAN |
RS485, CAN |
RS485, CAN |
||
Single String Quantity | 16 pcs |
16 pcs |
16 pcs |
8 pcs |
||
Working Temperature | 0~50°C |
0~50°C |
0~50°C |
0~50°C |
||
Shelf Temperature | -20~60°C |
-20~60°C |
-20~60°C |
-20~60°C |
||
Short current / Duration time | ≤2000A / 1ms |
≤4000A / 2ms |
≤4000A / 2ms |
≤4000A / 2ms |
||
IP Rating of Enclosure | IP20 |
IP20 |
IP20 |
IP20 |
||
Cooling Type | Natural |
Natural |
Natural |
Natural |
||
Humidity | 5%~95% (RH), No Condensation |
5%~95% (RH), No Condensation |
5%~95% (RH), No Condensation |
5%~95% (RH), No Condensation |
||
Altitude | ≤4000m |
≤4000m |
≤4000m |
≤4000m |
||
Service Life | 15+ years (20°C) |
15+ years (20°C) |
15+ years (20°C) |
15+ years (20°C) |
||
Cycle Life | ≥6000 cycles, 25°C |
≥6000 cycles, 25°C |
≥6000 cycles, 25°C |
≥6000 cycles, 25°C |

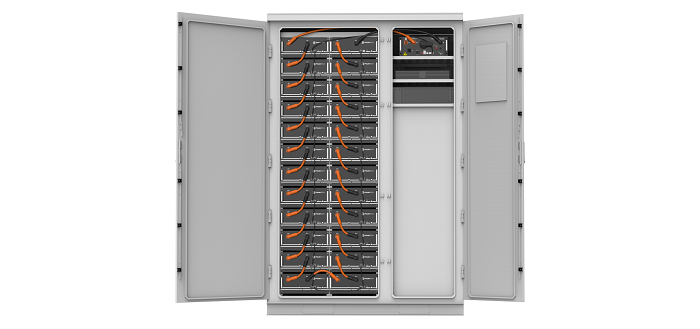

Specification of All-in-One LiFePO4 Battery Cabinet ESS | |||
---|---|---|---|
Nominal Battery Capacity | 113.7 kWh |
||
Battery DC Voltage Range | 696~864 V |
||
Battery Max. Operation Current | 148 A |
||
Battery Efficiency | 95% |
||
Rated AC Power | 60 (expandable to 4*60) |
||
Rated AC Output Voltage | 400 V |
||
Rated AC Output Frequency | 50/60 Hz |
||
Max. AC Current | 86 A |
||
Overload Capacity | 110%@1min |
||
AC PF | 0.8leading~0.8lagging |
||
THDi | 3% |
||
Isolation Type | Non-Isolation |
||
Peak Efficiency | 98.5% |
||
Unbalanced Capacity | 100% |
||
Output Voltage Accuracy | 1% |
||
Voltage Harmonic Distortion | 2%@lineload |
||
Overload Capacity | ≤110% |
||
PV Input Voltage | 200~800 VDC |
||
Max. PV Input Current | 100 A |
||
Max. PV Input Efficiency | 98.5% |
||
Weight | 2600 kg (including batteries) |
||
Dimension | 2320*1500*1107.5 mm |
||
On/Off-Grid Switch | Optional STS module, switching time≤20ms |
||
EMS | 10-inch LCD Touch Panel Self-Consumption; Micro-Grid Control; Demand Response; Remote Control; Time of Use |
||
Communication Type | Modbus TCP/IP |
||
Working Temperature | -20~60°C |
||
IP Rating of Enclosure | IP54 |
||
Humidity | 0%~95% (RH) |
||
Fire Extinguishing | Perfluoro |
||
Air Conditioner | 2 kW |
||
Anti-Corrosion | C3 (Optional upgrade to C5) |
||
Altitude | ≤3000m |

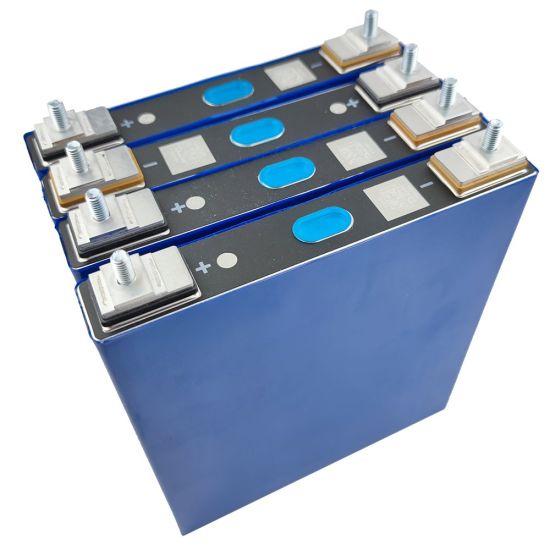

Specification of Prismatic LiFePO4 Battery Cell | ||||||
---|---|---|---|---|---|---|
Anode Material | Graphitic Carbon Electrode with a Metallic Backing |
|||||
Cathode Material | Lithium Iron Phosphate (LiFePO4) or LFP |
|||||
Type | Aluminium Case Battery Cell |
|||||
Safety / Reliability | All tests are in full compliance with requirements of GB/T 31485-2015 and GB/T 31486-2015. |
|||||
Brand | Gotion High-tech® |
Ganfeng® |
Lishen® |
CATL® |
||
Model Number | IFP27175200A-105Ah |
48173125-100Ah |
LP54173207-202Ah |
LEP71H3L7-01 |
||
Grade | A |
A |
A |
A |
||
Size | 27 x 175 x 200 mm |
48 x 174 x 132 mm |
54 x 173 x 207 mm |
72 x 174 x 207 mm |
||
Weight | 2.06 kg |
2.2 kg |
3.9 kg |
5.51 kg |
||
Nominal Capacity | 105 Ah |
100 Ah |
202 Ah |
302 Ah |
||
Nominal Voltage | 3.2 V |
3.2 V |
3.2 V |
3.2 V |
||
Internal Resistance | 0.5 mΩ |
≤0.4 mΩ |
0.2 mΩ |
0.3 mΩ |
||
Cycle Life | ≥3000 cycles |
≥3000 cycles |
≥3500 cycles |
≥4000 cycles |
